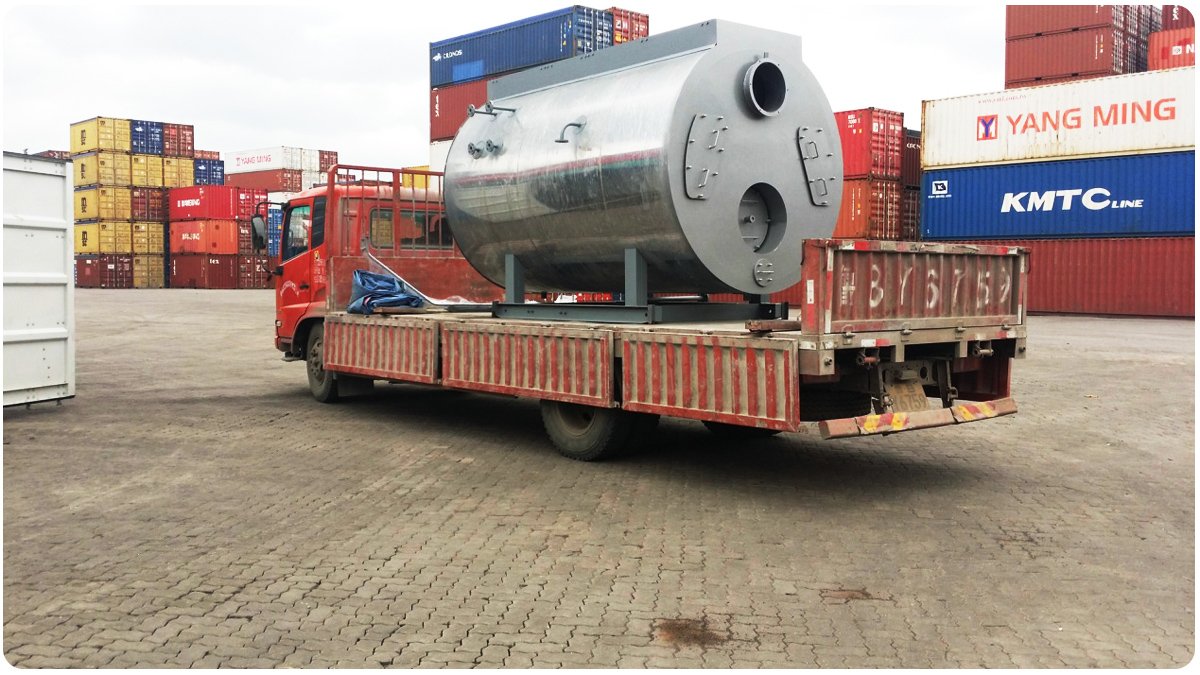

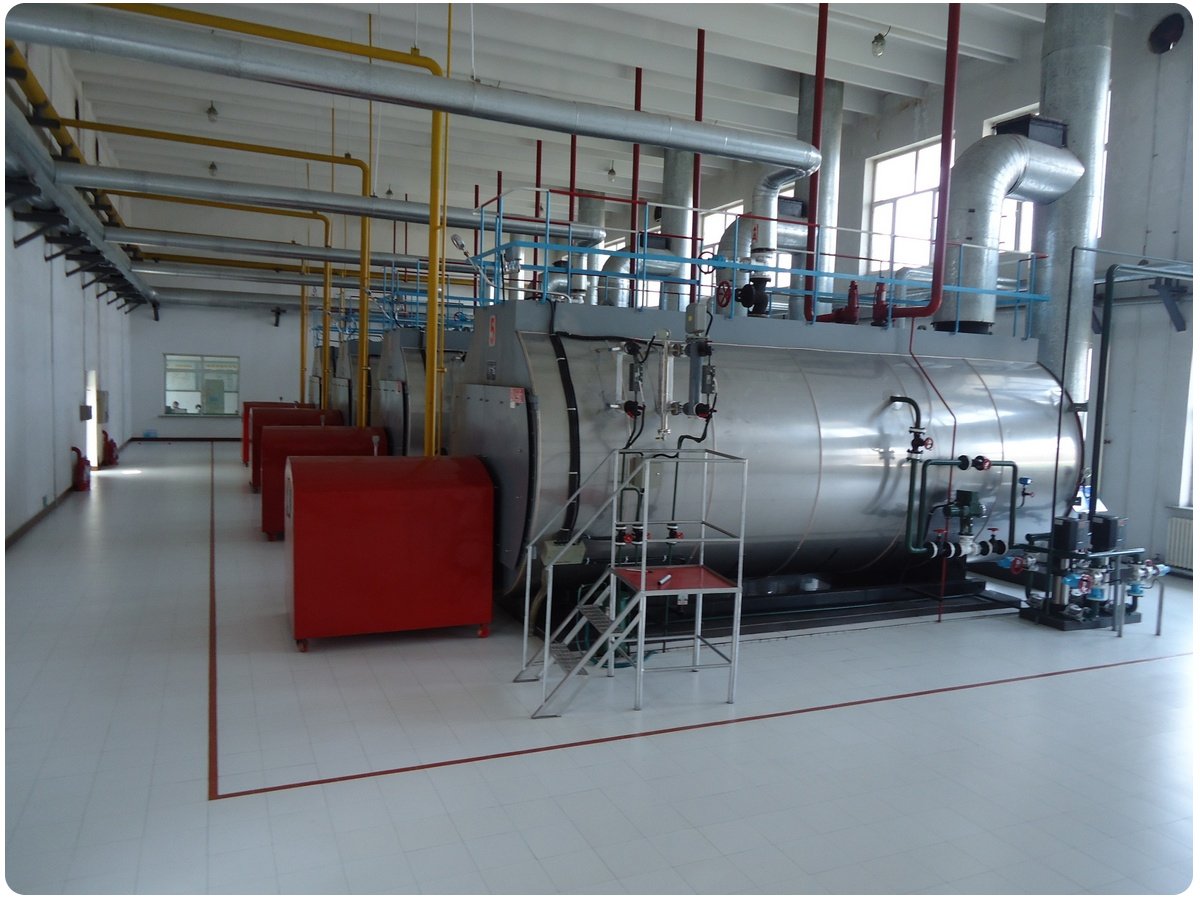

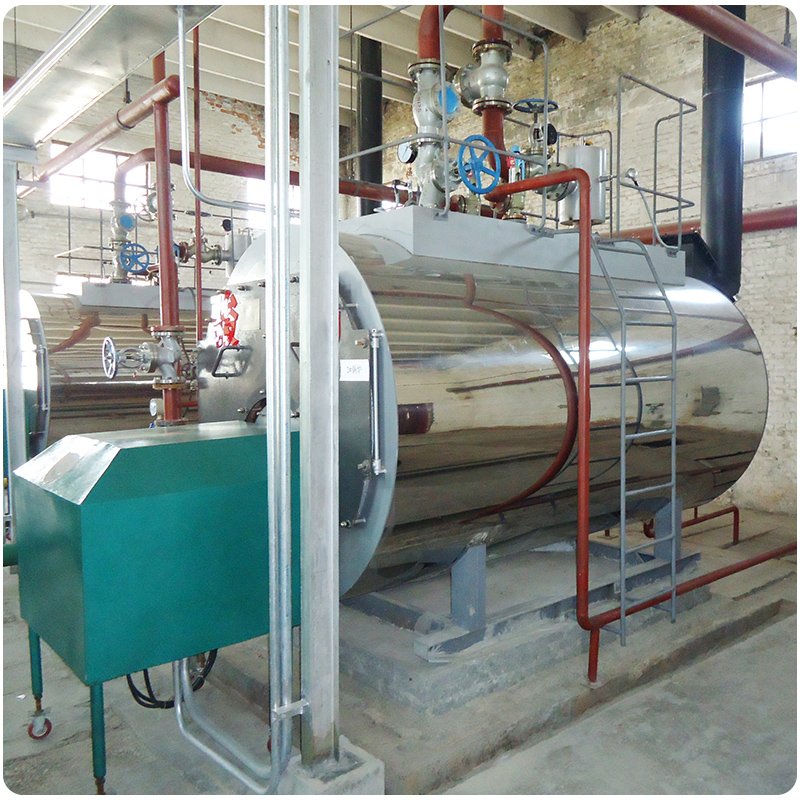

WNS Type gas boiler

Structure introduction:

WNS gas boiler is a horizontal internal combustion all wet back structure. The furnace adopts full waveform furnace. Due to the high temperature flue gas in full corrugated furnace combustion, fuel combustion is sufficient. The screw smoke pipe is adopted for heat transfer, which can increase the convection heat transfer coefficient of boiler and improve heat transfer ability. The whole boiler is placed on the sliding steel base so that when the boiler is heated, it can expand freely in front and back. Boiler front door cover is designed with hinge structure for easy opening and maintenance.

Unique advances:

  • ultra-low nitrogen emission is realized by combining advanced combustion technology and patented flue gas internal circulation technology.
  • Germany SAACKE original import of the most advanced TEMINOX low nitrogen burner. The boiler body and burner are designed to match each other.
  • Unique design of flue gas internal circulation structure. By designing the patented technology of water-cooling jacket in the furnace, the flue gas can reduce the combustion temperature in the furnace through internal circulation and combine with the low-nitrogen combustion technology, the initial emission of NOx can reach less than or equal to mg/Nm³.
  • High thermal efficiency and low operating cost.
  • It is equipped with condensing recovery device, which can be designed in an integrated way according to the user’s demand to save energy and achieve high thermal efficiency.
  • The boiler has a long service life.
  • 100% water-clad fire structure. Double wet back water cooling large back combustion chamber. The radiative heating area is large. The combustion space is large and full. The thermal efficiency of the boiler can be improved to the maximum, and the service life of the boiler can be extended by the water-cooled large combustion chamber.
  • Compact structure and small floor space.
  • The boiler has compact structure and small floor space. The area of heat transfer is greatly increased by using the threaded pipe. The boiler size is compact, and the boiler proper, economizer and condenser can be integrated to reduce the boiler occupation area.

SZS Type gas and oil boiler

1.Structure introduction

SZS gas-fired boiler is a double-barrel vertical water tube D type boiler. The boiler proper adopts the modularization design to realize the integral quick installation of the large-capacity boiler and shorten the installation time. The boiler also adopts the whole membrane water wall structure which covers all front wall, back wall and side wall . The micro-positive pressure combustion in furnace can enhance the heat transfer effect. Smoke leakage protection has significantly reduced heat loss. The whole boiler is placed on a sliding steel base, which allows the boiler to expand freely after heating. The upper and lower drums are arranged vertically with convection tube bundles forming the boiler body.

2.Unique advances

  • Full membrane wall design, compact structure, modular delivery, short installation, reliable quality and easy maintenance and low civil construction cost.
  • Germany SAACKE original import of the most advanced TEMINOX low nitrogen burner. The boiler body and burner are designed to match each other.
  • Unique design of flue gas internal circulation structure. By designing the patented technology of water-cooling jacket in the furnace, the flue gas can reduce the combustion temperature in the furnace through internal circulation and combine with the low-nitrogen combustion technology, the initial emission of NOx can reach less than or equal to mg/Nm³.
  • Compact structure and small overall size. The tail convection tube bundle uses a needle tube to enhance heat transfer and increase the heat transfer area.
  • Furnace water cooling wall forces water circling to ensure safety.
  • Economizer and condenser are set. Economizer is single screw wing pipe structure with high thermal efficiency.
